OM4 St To St Fiber Patch Cable Duplex OFNR PVC LSZH 3.0mm

Product Categories
Shenzhen damu technology co. LTD
Contact Now

OM4 St To St Fiber Patch Cable Duplex OFNR PVC LSZH 3.0mm

  • 1
  • 2
  • 3

Brand Name : DAMU

Model Number : DM-PC-MPOLC

Certification : CE ROSH ISO9001

Place of Origin : China

MOQ : 50

Payment Terms : T/T

Supply Ability : 500000/month

Delivery Time : 5-8

Packaging Details : NORMAL PACKING

Fiber type : MM

Application : FTTH FTTB FTTX Network,FTTH/Test equipments/TV/LAN/Telecommunication equipments

Connector type : PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST or Hybrid

Length : 1m 2m 3m or Customized

Insertion loss : ≤0.3dB

Connector : LC,SC,SC LC FC ST MU,anything,SC/APC

Material : PVC,LSZH,PVC/LSZH

Product name : Fiber Optic Patch Cord

Item : optical fiber patch cord

Quality control : 100% test before shipping

Polish : PC/UPC/APC

Real factory : Yes

Contact Now

Product Details
Fiber Type Multimode Application FTTH FTTB FTTX Network
Connector Type APC/UPC Material PVC/LSZH
Product Namee Fiber Optic Patch Cord Color Customized
Wavelength 1310nm Or 1550nm Fiber Count Simplex Or Duplex
Polish PC/UPC/APC Type Single Mode/Multi-mode
Quality Control 100% Test Before Shipping Length 1m 2m 3m Or Customized
High Light

2.0mm Fiber Optic Patch Cord

,

OM4 Fiber Optic Patch Cord

,

OM4 LC To LC Fiber Cable
Product Description

OM4 OFNR PVC LSZH 3.0mm Fiber Optic Patch Cord Duplex ST To ST

Specification:

Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3
Cable Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750
Return Loss
(Singlemode)		 UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C
Geometry Requirement
( Singlemode)		 Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.

4. Environmentally Stable

Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

5. Industry and military application

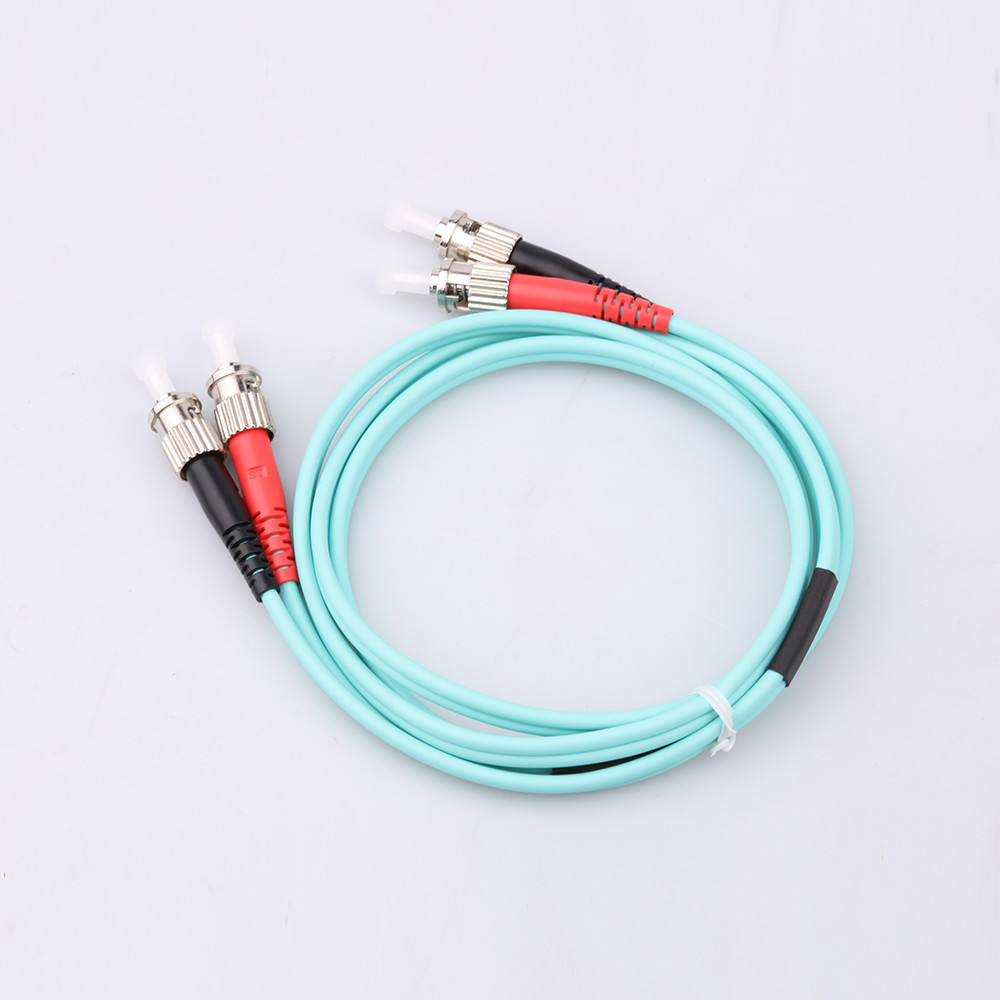

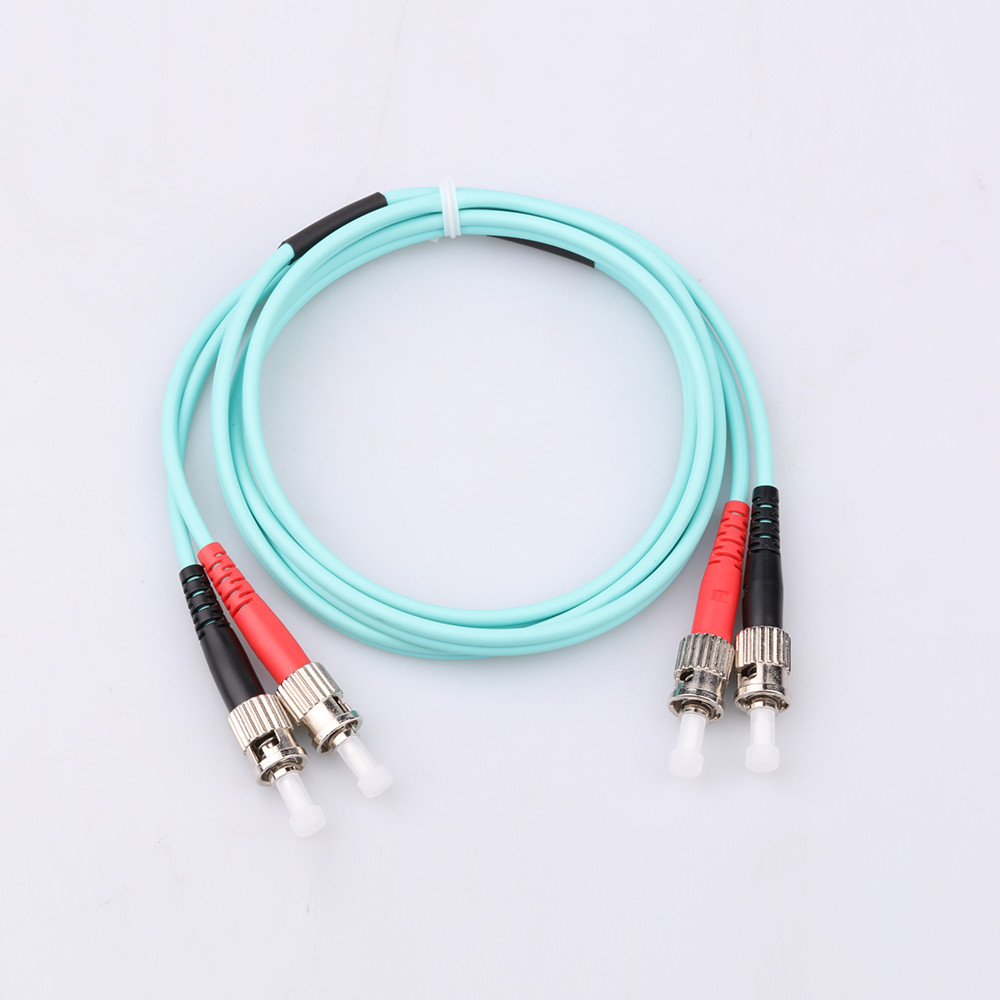

OM4 St To St Fiber Patch Cable Duplex OFNR PVC LSZH 3.0mmOM4 St To St Fiber Patch Cable Duplex OFNR PVC LSZH 3.0mm
